OV9732 Sensor : OmniVision's OV9732 is a low-power and ultra-compact CameraChip™ sensor that
brings 720p high definition (HD) video to mainstream security systems and wireless battery-powered
smart-home cameras. Compared to the previous generation OV9712, the OV9732 is35 percent smaller
and delivers dramatically improved pixel performance.The OV9732 CameraChip sensor
utilizesOmniPixel3-HS™ high sensitivity 3.0 μm pixel technology to bring industry-leading scene
reproduction to a wide range of security and lifestyle camera applications that operate in extremely
high- and low-light conditions. The sensor's narrow 9-degree chief ray angle (CRA) supports
consumer-grade optical lens systems and reduces image artifacts for enhanced performance. When
operating in low-power mode, the 1/4-inch OV9732 requires just 99 mW to capture 720p HD video at 30
frames per second.
|

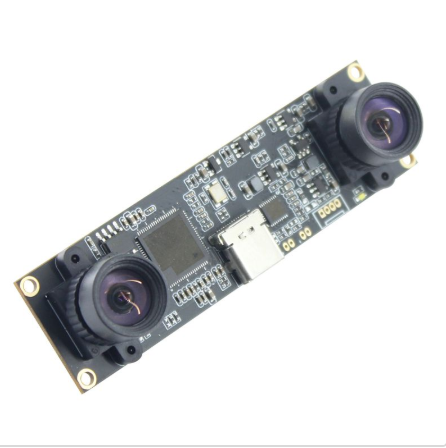

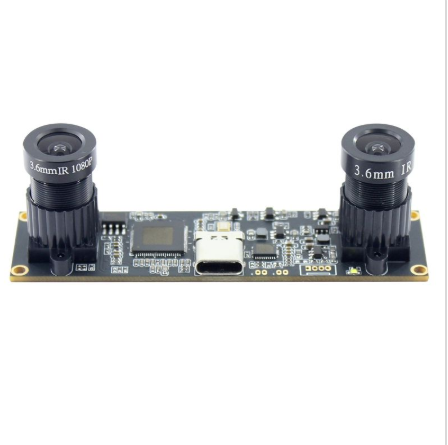

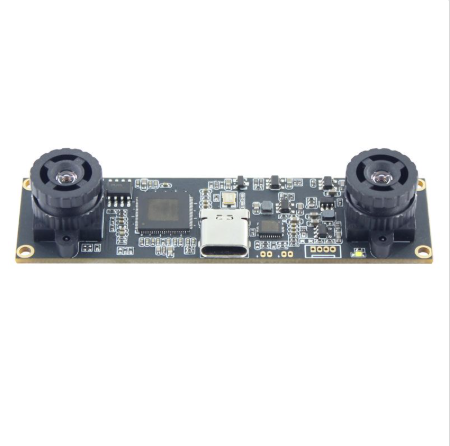

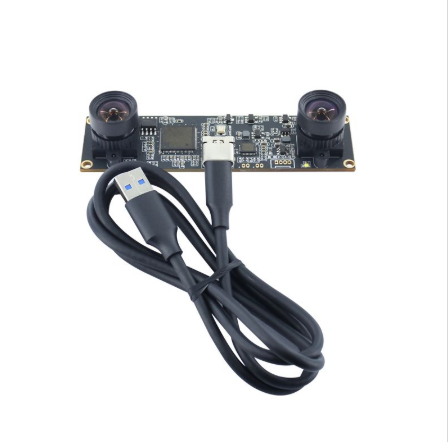

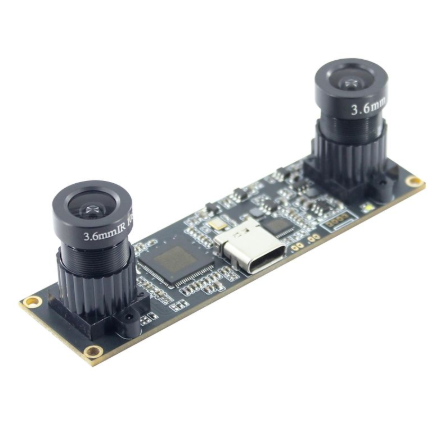

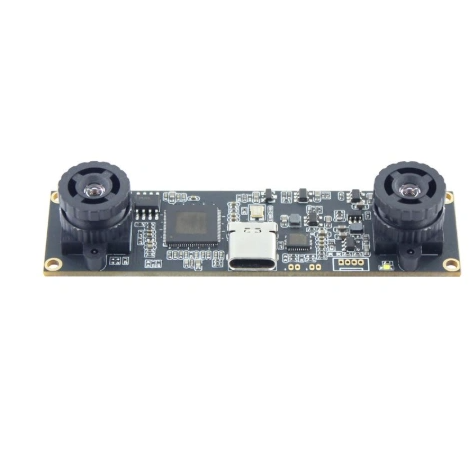

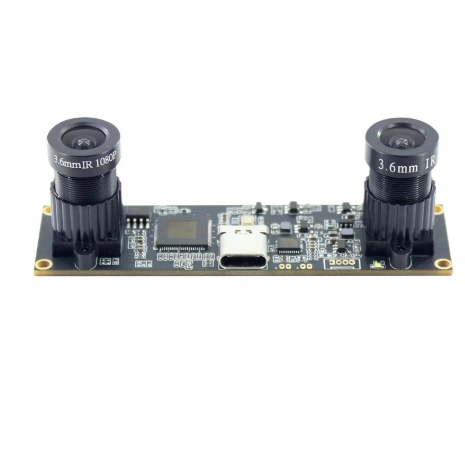

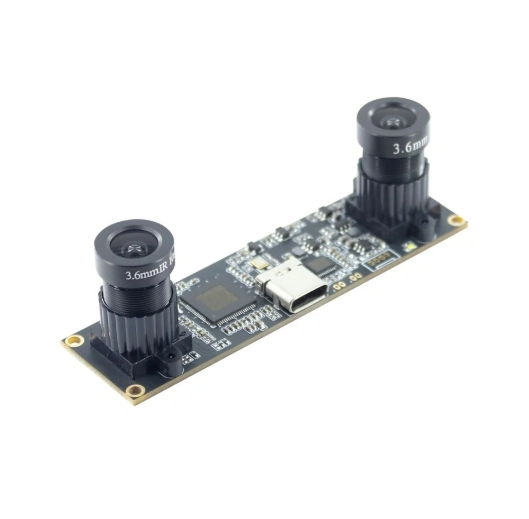

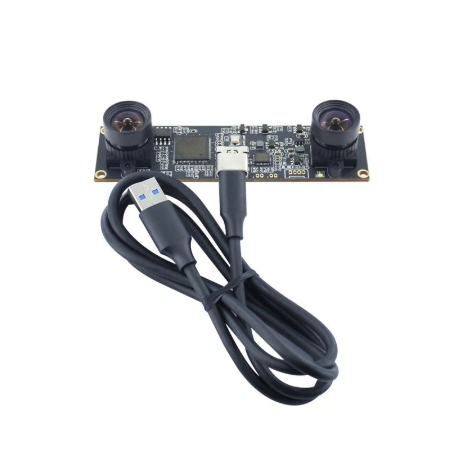

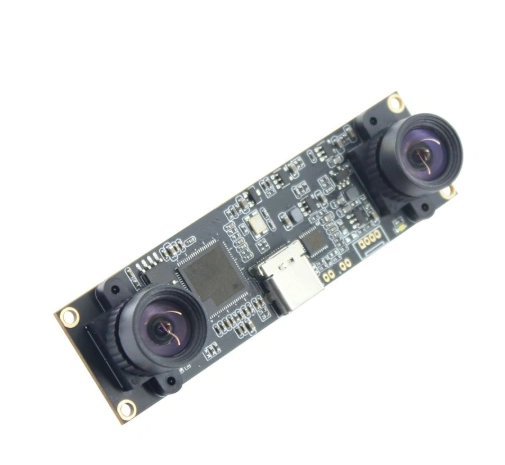

Module No. |
HBVCAM-W2280U3-2 V22 |
|

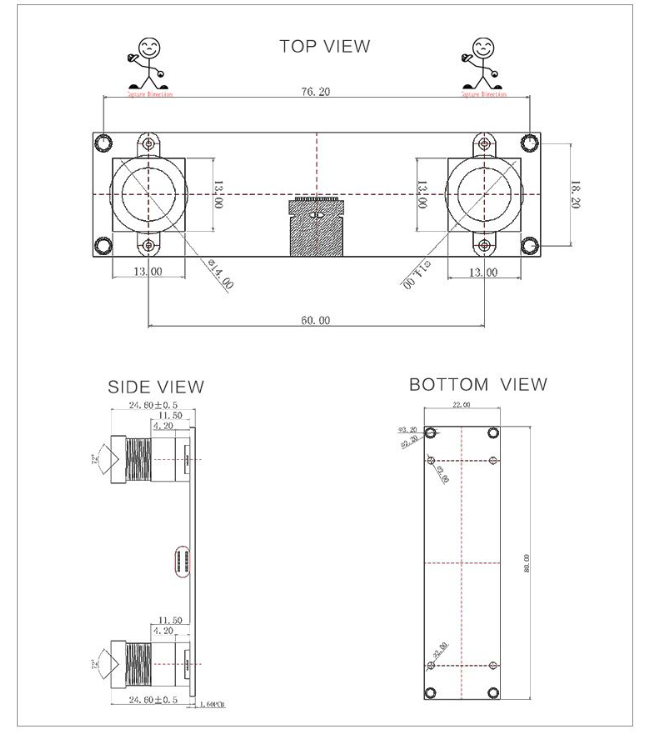

Module Size |
80mm × 22mm × 16.20mm±0.5MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Fixed |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|
interface |
USB 3.0 |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
710 mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
OV9732 (1/4” ) |
|
Seneor Package |
CSP,Bare Die |
|
Maximum resolution |
2560*720 |
|
Sensitivity |
2066mV /（lux-sec） |
|
Pixel Size |
3µm x 3µm |
|

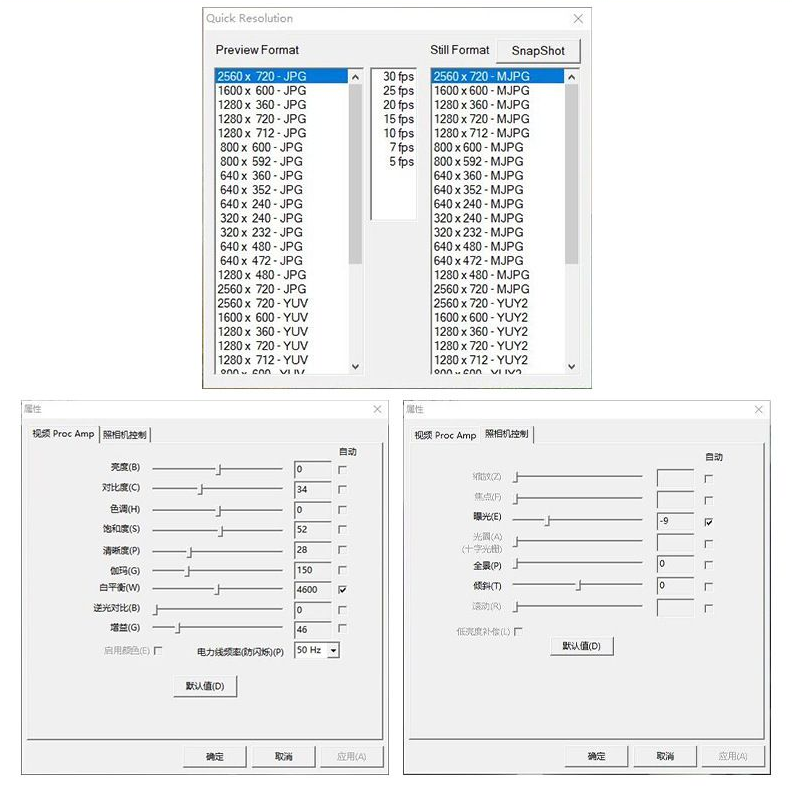

Maximum Image Transfer Rate |
MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 320x232 30FPS / YUY2 320x232 30FPS MJPEG 640x480 45FPS / YUY2 640x480 30FPS MJPEG 640x472 45FPS / YUY2 640x472 30FPS MJPEG 640x352 60FPS / YUY2 640x352 30FPS MJPEG 640x360 60FPS / YUY2 640x360 30FPS MJPEG 640x240 30FPS / YUY2 640x240 30FPS MJPEG 800x592 30FPS / YUY2 800x592 20FPS MJPEG 800x600 30FPS / YUY2 800x600 20FPS MJPEG 1280x712 30FPS / YUY2 1280x712 5FPS MJPEG 1280x720 30FPS / YUY2 1280x720 5FPS MJPEG 1280x360 60FPS / YUY2 1280x360 10FPS MJPEG 1280x480 30FPS / YUY2 1280x480 10FPS MJPEG 1600x600 30FPS / YUY2 1600x600 10FPS MJPEG 2560x720 30FPS / YUY2 2560x720 5FPS Dual Resolution: MJPEG 640x240 30FPS / YUY2 640x240 30FPS MJPEG 1280x360 60FPS / YUY2 1280x360 10FPS MJPEG 1280x480 30FPS / YUY2 1280x480 10FPS MJPEG 1600x600 30FPS / YUY2 1600x600 10FPS MJPEG 2560x720 30FPS / YUY2 2560x720 5FPS
|
|
S/N Ratio |
39 db |
|
Max Dynamic Range |
72 db |
|
Shutter type |
Global shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
NO |
|
Lens Construction |
2G2P |
|
F/No |
2.4 |
|
EFL |
3.0mm |
|

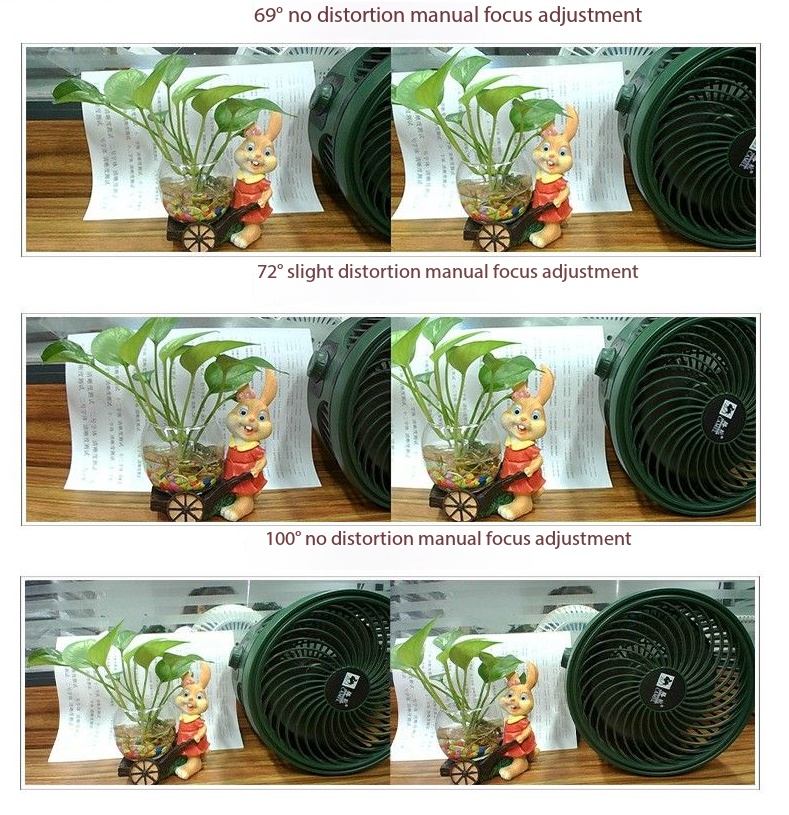

FOV |
100° |
|
TV Distortion |
<5% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
