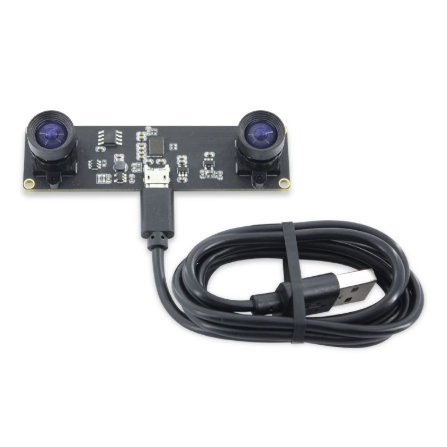

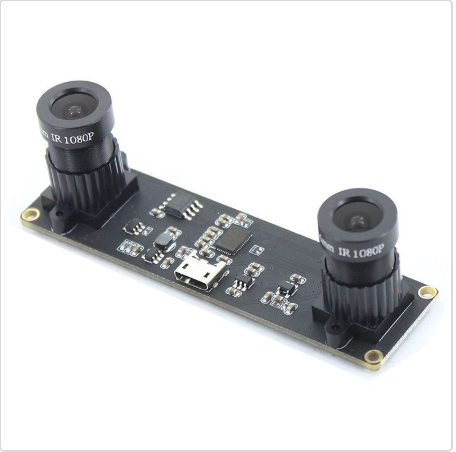

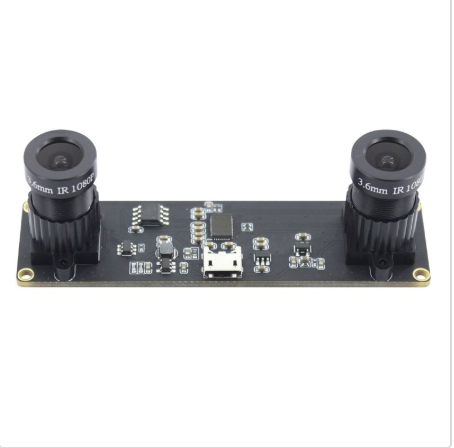

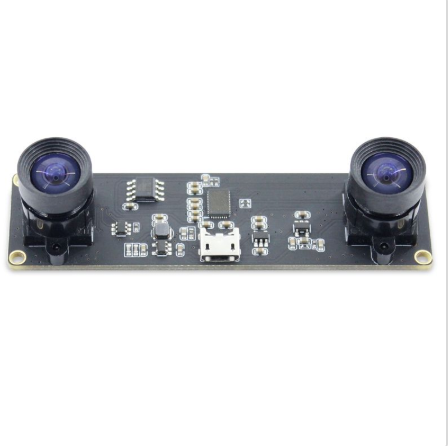

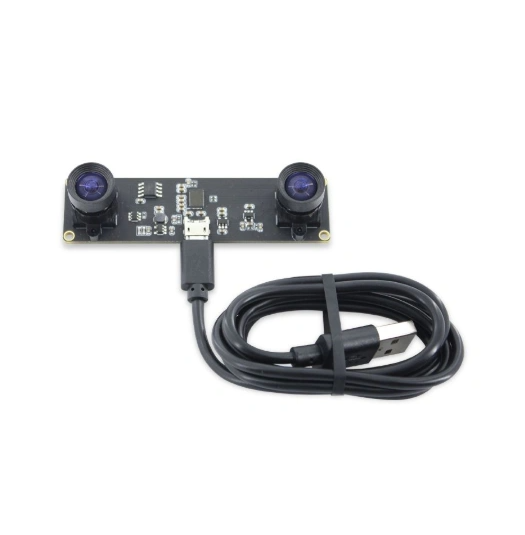

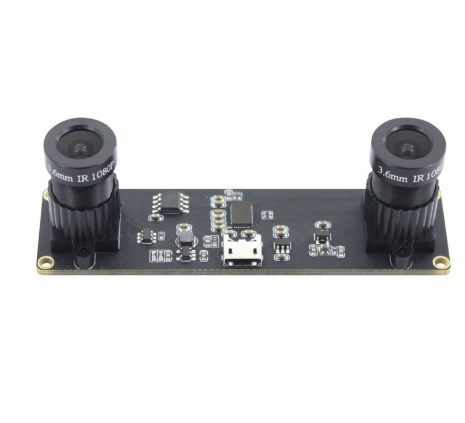

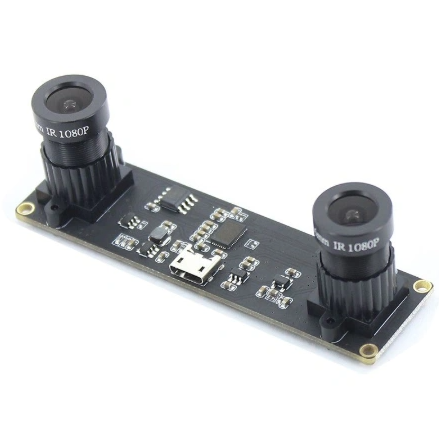

1MP 3D, VR ranging 3D reconstruction binocular camera module
2, product size:80*22*25.4±0.5 MM
3, baseline: 60mm
4, product chip: JX-H62 * 2(14th”)
5, Max resolution, format, frame rate: 2560 * 720 YUV MJPEG 30FPS
6, single Max Angle: 45 ° Distortion
7, sample cable: -1 M Micro usb cable

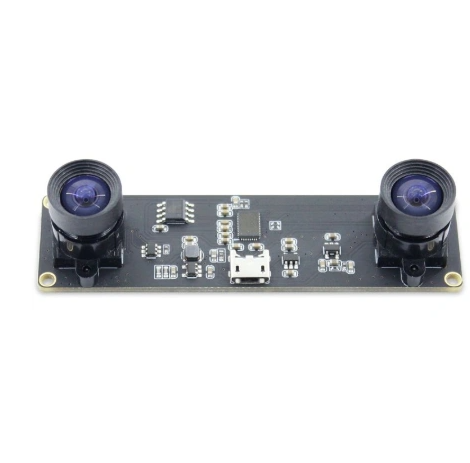

1MP 3D, VR ranging 3D reconstruction binocular camera module
Product Specification:
|
Module No. |
HBVCAM-W202011HD V22 |
|||
|
Module Size |
80mm × 22mm × 16.1mm±0.5MM |
|||
|
Temperature (Operation) |
-30°C to 70°C |
|||
|
Temperature (Stable Image) |
0°C to 50°C |
|||
|
Assembly technique |
SMT (ROSH) |
|||
|
Focus |
Fixed |
|||
|
Object distance |
30CM-infinity |
|||
|
Resolution |
600LW/PH (Center) |
|||
|
PCB printing ink |
Black |
|||
|
interface |
USB 2.0 |
|||
|
Power suuply |
USB bus power |
|||
|
supply voltage |
DC 5V±5% |
|||
|
Maximum Power consumption |
740 mW |
|||
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|||
|
Sensor |
JX-H62 (1/4” ) |
|||
|
Seneor Package |
CSP,Bare Die |
|||
|
Maximum resolution |
2560*720 |
|||
|
Sensitivity |
2066mV /（lux-sec） |
|||
|
Pixel Size |
3µm x 3µm |
|||
|
MJPEG 640x472 |
30FPS / |
YUY2 640x472 |
30FPS |
|
|
MJPEG 640x480 |
30FPS / |
YUY2 640x480 |
30FPS |
|
|
Maximum Image Transfer Rate |
MJPEG 1280x480 MJPEG 1280x712 |
30FPS / 30FPS / |
YUY2 1280x480 YUY2 1280x712 |
15FPS 10FPS |
|
MJPEG 1280x720 |
30FPS / |
YUY2 1280x720 |
10FPS |
|
|
MJPEG 2560x720 |
30FPS / |
YUY2 2560x720 |
5FPS |
|
|
S/N Ratio |
39db |
|||
|
Max Dynamic Range |
72db |
|||
|
Shutter type |
Electronic rolling shutter |
|||
|
AGC/AEC/Whiter balance |
Auto |
|||
|
Output Formats |
YUY2/MJPEG |
|||
|
Microphone |
NO |
|||
|
Lens Construction |
2G2P |
|||
|
F/No |
2.4 |
|||
|
EFL |
3.0 mm |
|||
|
FOV |
100° |
|||
|
TV Distortion |
<5% |
|||
|
Relative Illumination (Sensor) |
70% |
|||
|
IR Filter |
650±10nm |
|||
|
Module Package |
Anti-electrostatic tray |
|||
|
Certifications |
FCC/CE/ROSH |
