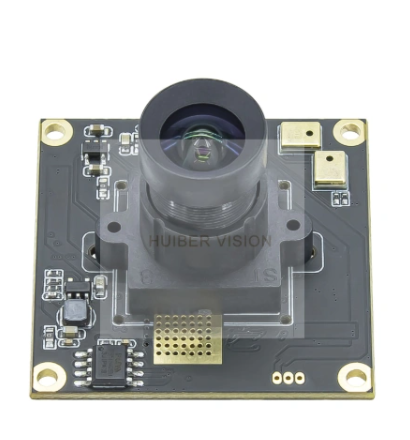

Specification
|
Module No.
|

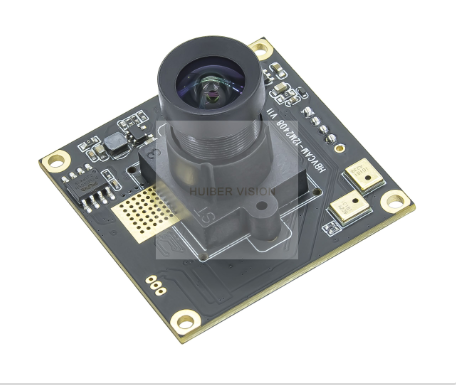

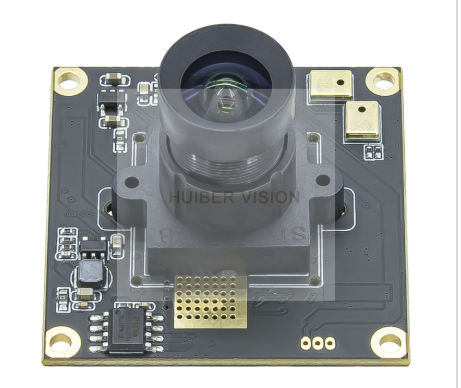

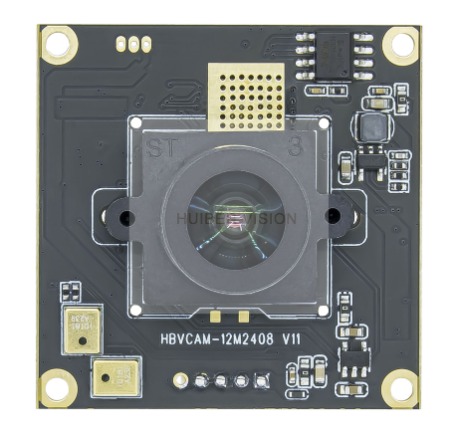

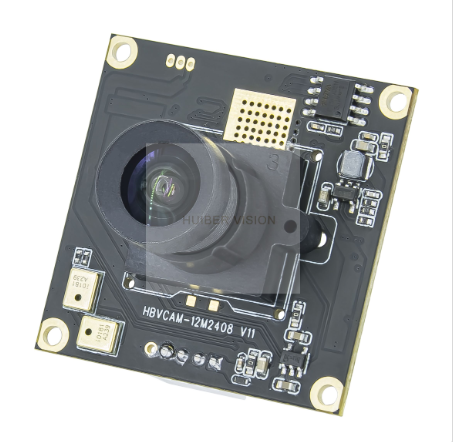

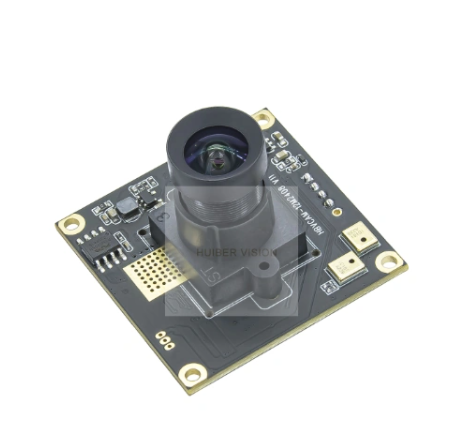

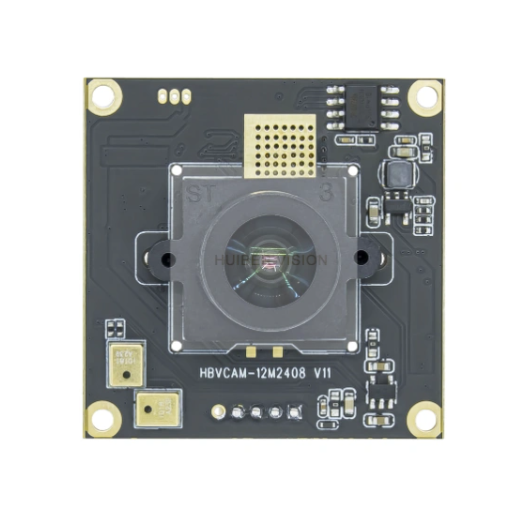

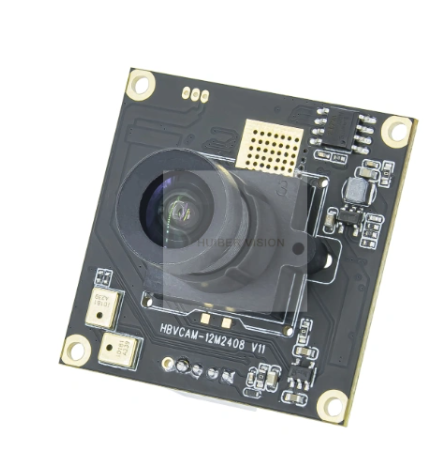

HBVCAM-12M2408 V11
|
|
Module Size
|
38mm × 38mm × 24.50mm±0.5MM
|
|
Temperature (Operation)
|
-30°C to 70°C
|
|
Temperature (Stable Image)
|
0°C to 50°C
|
|
Assembly technique
|
SMT (ROSH)
|
|
Focus
|
Fixed
|
|
Object distance
|
30CM-infinity
|
|
Resolution
|
600LW/PH (Center)
|
|
PCB printing ink
|
Black
|
|
interface
|
USB 2.0
|
|
Power suuply
|
USB bus power
|
|
supply voltage
|
DC 5V±5%
|
|
Maximum Power consumption
|
950 mW
|
|
Operating system request
|
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc
|
|
Sensor
|
IMX577 (1/2.3” )
|
|
Seneor Package
|
CSP,Bare Die
|
|
Maximum resolution
|
3840*3040
|
|
Sensitivity
|
50mV /（lux-sec）
|
|
Pixel Size
|
1.55µm x 1.55µm
|
|
Maximum Image Transfer Rate
|
MJPEG 1920x1080 120FPS / YUY2 1920x1080 5FPS
MJPEG 2592x1944 30FPS / YUY2 2592x1944 1FPS MJPEG 3264x2160 30FPS / YUY2 3264x2160 1FPS MJPEG 3840x2880 20FPS / YUY2 3840x2880 1FPS MJPEG 3840x3040 20FPS / YUY2 3840x3040 1FPS |
|
S/N Ratio
|
40db
|
|
Max Dynamic Range
|
83db
|
|
Shutter type
|
Electronic rolling shutter
|
|
AGC/AEC/Whiter balance
|
Auto
|
|
Output Formats
|
YUY2/MJPEG
|
|
Microphone
|
Support
|
|
Lens Construction
|
6G
|
|
F/No
|
2.2
|
|
EFL
|
2.8 mm
|
|
FOV
|
85°
|
|
TV Distortion
|
<1.0%
|
|
Relative Illumination (Sensor)
|
70%
|
|
IR Filter
|
650±10nm
|
|
Module Package
|
Anti-electrostatic tray
|
|
Certifications
|
FCC/CE/ROSH
|
Product Drawings
|
Module Size
|
38mm × 38mm × 24.50mm±0.5MM
|
|
Maximum resolution
|
3840*3040
|
|
EFL
|
2.8mm
|
|
FOV
|
85°
|
|
Pixel Size
|
1.55µm x 1.55µm
|
|
Focus
|
Fixed Focus
|
