059 Revised Desktop Winding & Unwinding All-in-One Machine / 076

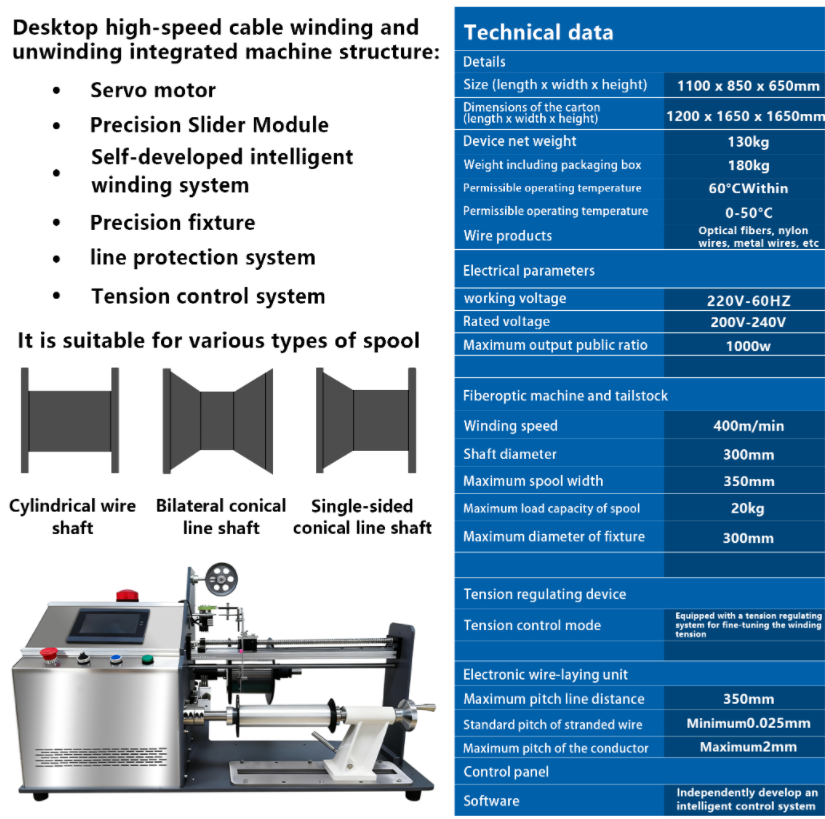

Desktop high-speed cable winding andunwinding integrated machine structure:
  • Servo motor
  • Precision Slider Module
  • Self-developed intelligent
  • winding system
  • Precision fixture
  • line protection system
  • Tension control system
  • 059 Revised Desktop Winding & Unwinding All-in-One Machine / 076
  • 059 Revised Desktop Winding & Unwinding All-in-One Machine / 076
  • 059 Revised Desktop Winding & Unwinding All-in-One Machine / 076

Description

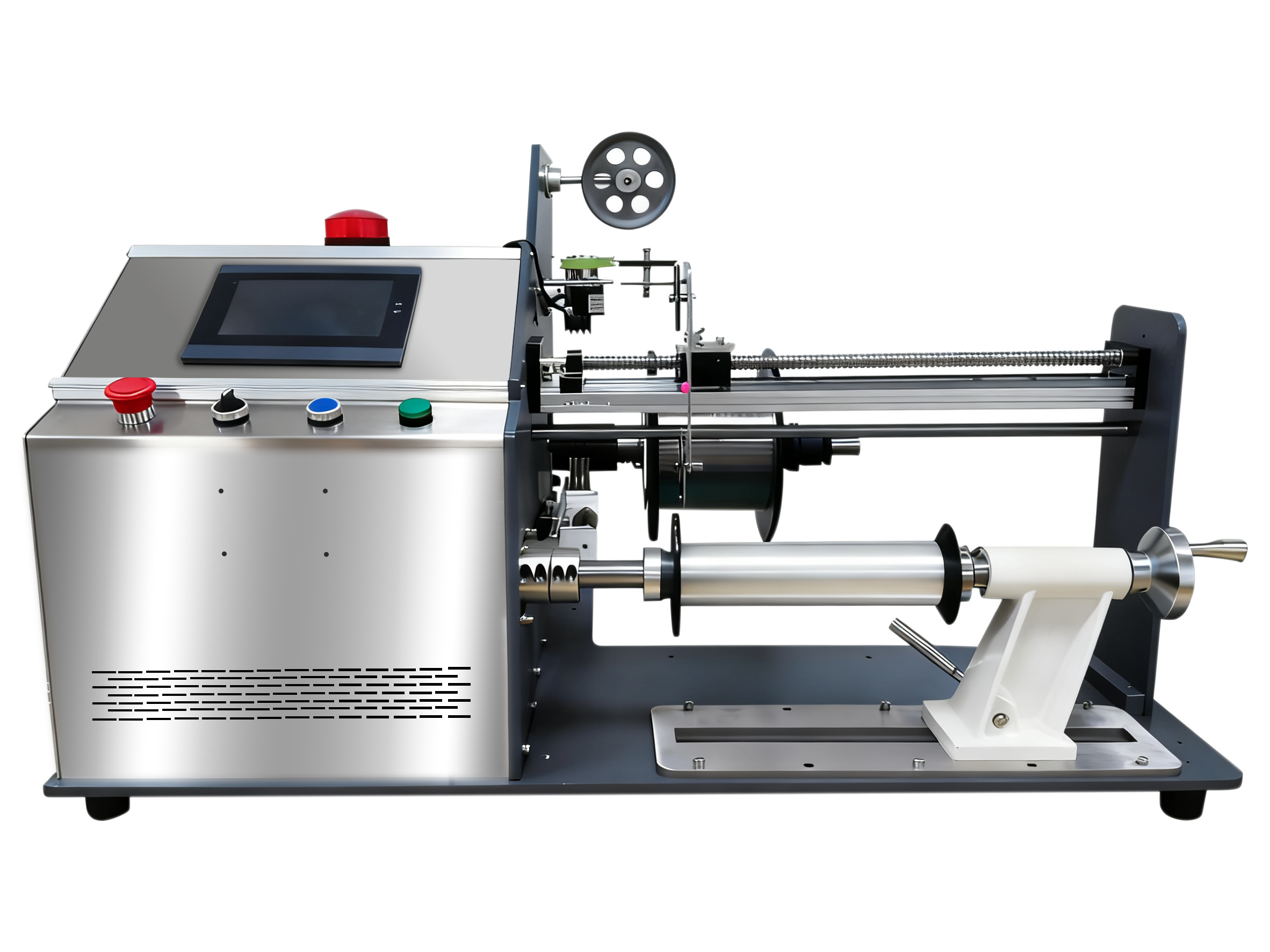

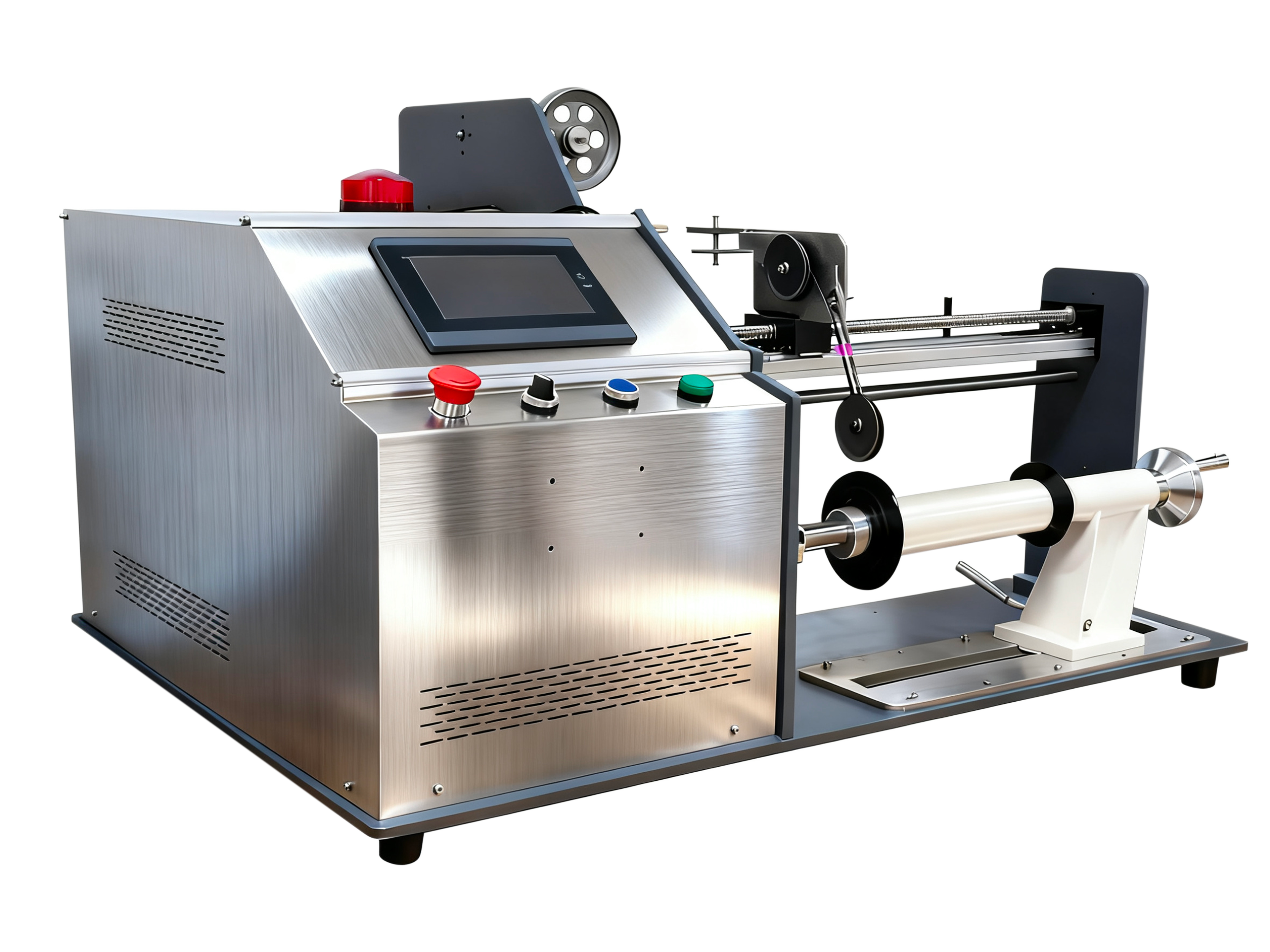

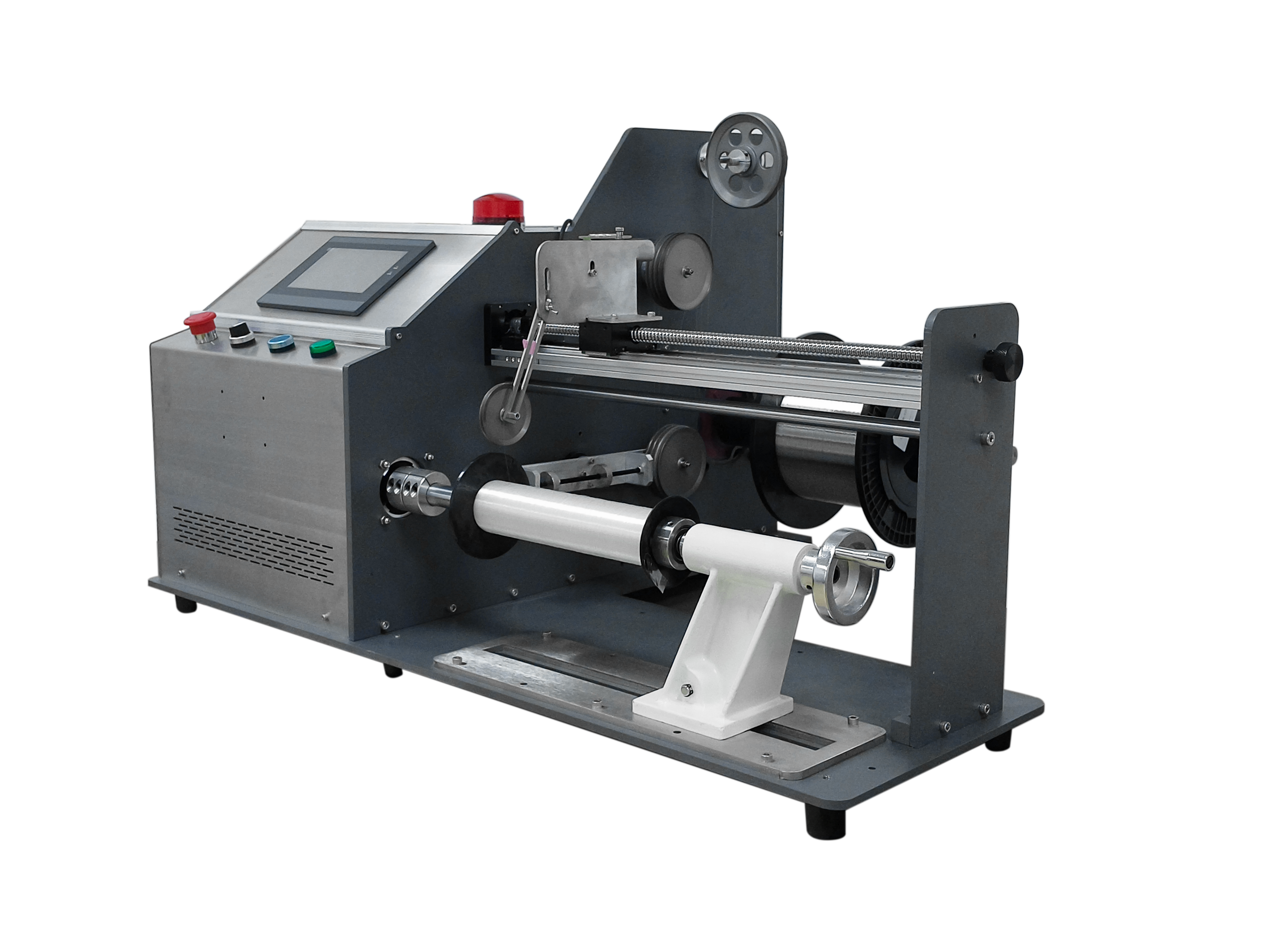

Desktop high-speed cable winding and unwindingintegrated machine
ITC-PLC-80
The desktop integrated retractable design saves space and is easy to operate. lt can reach a maximum speed of 400 meters per minute, effectively enhancing the winding capacity of fine wires and electronic coils. Active wire placement + adjustable tension module, suitable for different materials and wire diameters, with stable tension for fine wire winding. Ceramic large wire wheel for wire passing, full contact part wire protection, reducing wire wear, With the support of an intelligent system, parameter adjustment and monitoring are intuitive, easy to use, and export is worry-free, it can match foreign voltages and supports language customization.
