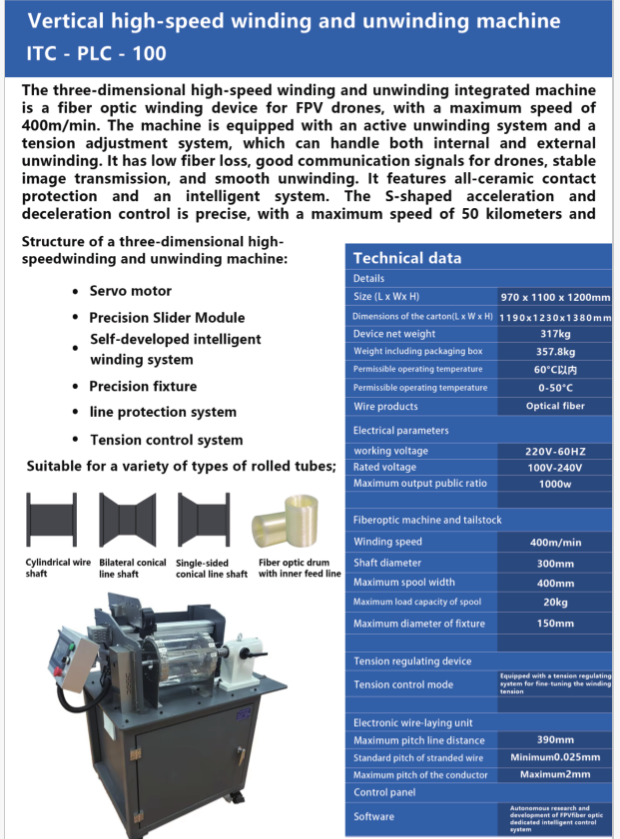

Empowering FPV Drone Fiber Optic Tethering Systems – The ITC-PLC-100 3D High-Speed Cable Retrieval Machine
In today's rapidly evolving FPV drone fiber optic tethering technology, stable and efficient fiber optic cable retrieval solutions have become a core industry requirement. The ITC-PLC-100 3D high-speed cable retrieval machine, with its ultra-fast retrieval speed of 400 meters per minute, intelligent tension control system, and all-scenario adaptability, redefines the efficiency and reliability of drone fiber optic operations, providing strong support for aerial photography, inspection, emergency communications, and other fields.
Core Performance: Perfect Balance of Speed and Precision
As a fiber optic cable retrieval device specifically designed for FPV drones, the ITC-PLC-100 breaks through traditional technical bottlenecks, achieving a retrieval speed of 400 meters per minute. Simultaneously, through an S-shaped acceleration/deceleration control algorithm, it ensures smooth and shock-free start-up and shutdown processes, preventing fiber damage due to sudden tension changes. The equipment is equipped with a self-developed intelligent retrieval system, combining a servo motor and a precision slider module to achieve a cable routing accuracy of ±0.025mm, completely solving industry pain points such as uneven fiber winding and knotting.
Dual System: Active Unwinding + Tension Adjustment. The built-in active unwinding mechanism and dynamic tension control system support switching between internal and external unwinding modes. Whether using a single-axis spool or a custom-made bobbin, it achieves low-loss, high-stability fiber optic transmission with a signal attenuation rate 30% lower than the industry standard.
Full Ceramic Conductor Protection: Key conductor components are made entirely of ceramic material, which is wear-resistant and high-temperature resistant (withstanding up to 60℃), effectively preventing fiber optic damage during high-speed operation and extending fiber optic lifespan by more than 50%.
Intelligent Control: One-button start, worry-free operation. The equipment is equipped with a self-developed intelligent control panel that supports parameter presets, real-time monitoring, and fault self-diagnosis. Operators can quickly set parameters such as winding speed and tension threshold via the touchscreen, and the system automatically matches the optimal operating mode. Furthermore, the equipment is compatible with various spool types—from cylindrical bobbins, double-tapered bobbins to single-tapered bobbins, and even custom fiber optic spools—allowing for rapid switching via precision clamps to adapt to different fiber optic specifications in various scenarios (maximum bobbin diameter 300mm, maximum load 20kg). Industrial-Grade Reliability: Born for Extreme Environments
The ITC-PLC-100 features a high-strength alloy frame and modular design, with a net weight of 317kg and compact dimensions (970×1100×1200mm) for easy transportation and field deployment. The electrical system supports a wide voltage input of 220V-60Hz, with built-in overload and short-circuit protection. Even in a wide temperature range of -5℃ to 50℃, it maintains continuous and stable operation 24/7, meeting the demands of demanding scenarios such as field operations and industrial inspections.
Application Scenarios: Beyond Drones
In addition to fiber optic tethering for FPV drones, the ITC-PLC-100 can be widely used in:
Emergency Communications: Rapidly deploying fiber optic links to provide a stable network for disaster sites;
Marine Exploration: Fiber optic deployment and take-up for underwater robots (ROVs), with a salt spray corrosion resistant design;
Industrial Automation: Cable management for high-precision fiber optic sensing systems.
Three Reasons to Choose the ITC-PLC-100:
Efficiency Revolution: 400m/min deployment/retraction speed, 200% faster than traditional equipment, significantly reducing preparation time;
Cost Optimization: Low fiber loss + long lifespan design, reducing annual maintenance costs per unit by 40%;
Service Commitment: Customized spool adaptation solutions and lifetime technical support, 24/7 customer support.
Experience Future-Oriented Fiber Optic Deployment Technology Now!
The ITC-PLC-100 3D High-Speed Deployment/Retraction Machine, with its robust performance and intelligent technology, helps your drone fiber optic system break through limitations. Whether for commercial aerial photography, power line inspection, or emergency rescue, it will become your most reliable "fiber optic steward."
